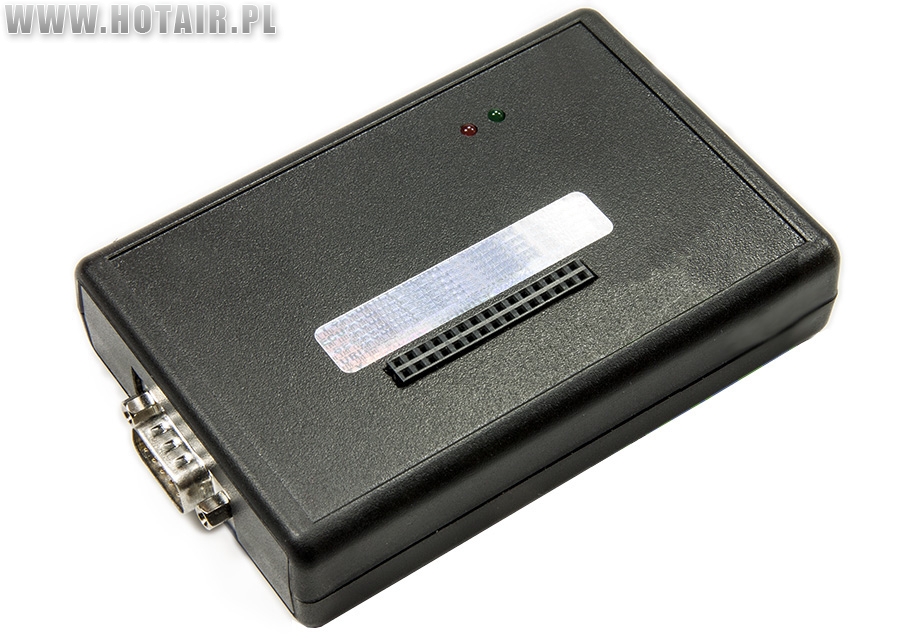

UProgramator UPA PROG USB USP-S + ZESTAW PLUGINÓW

Wersja w obudowie

Jest kompatybilny z portami USB 2.0 czy 3.0. Programator nie wymaga zewnętrznego zasilania. Pozwala na samodiagnoze połączeń

Dodano wsparcie dla Renesas V850

uPD70F3333, uPD70F3334, uPD70F3335, uPD70F3336, uPD70F3340, uPD70F3341, uPD70F3342, uPD70F3343, uPD70F3350, uPD70F3351, uPD70F3352, uPD70F3353, uPD70F3370A, uPD70F3371, uPD70F3372, uPD70F3373, uPD70F3374, uPD70F3375, uPD70F3376A, uPD70F3377A, uPD70F3378, uPD70F3379, uPD70F3380, uPD70F3381, uPD70F3382, uPD70F3383, uPD70F3384, uPD70F3385, uPD70F3624, uPD70F3628, uPD70F3629, uPD70F3632, uPD70F3633, uPD70F3634, uPD70F3635, uPD70F3736

Dodano nowe procesory MOTOROLA

MC9S08DZ16/32/48/60, MC9S08AW16/32/48/60,MC9S08GB60, MPC5606B

MC9S12D64, MC9S12A128, MC9S12B128, MC9S12C16, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12C128, MC9S12DG128, MC9S12DG256, MC9S12DP512, MC9S12XD64, MC9S12XD128, MC9S12XDT256 , MC9S12XDT384, MC9S12XDT512, MC9S12XA256, MC9S12XEG128, MC9S12XET256, MC9S12XEQ384, MC9S12XEQ512, MC9S12XEP768, MC9S12XEP100, MC9S12XHY128, MC9S12XHY256, MC9S12XS64, MC9S12XS128, MC9S12XS256

MC9S12D64, MC9S12A128, MC9S12B128, MC9S12C16, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12C128, MC9S12DG128, MC9S12DG256, MC9S12DP512, MC9S12XD64, MC9S12XD128, MC9S12XDT25, MC9S12XDT38, MC9S12XDT51, MC9S12XA256, MC9S12XEG128, MC9S12XET256, MC9S12XEQ38, MC9S12XEQ51, MC9S12XEP768, MC9S12XEP100, MC9S12XHY12, MC9S12XHY25, MC9S12XS64, MC9S12XS128, MC9S12XS256

UPA PROG UUSP-S

Opis programatora

• 30 pinowe złącze, które pozwala na 20 konfiguracji I/0s
• Złącze do pracy w układzie - 6 konfiguracji pracy I/Os,zabezpieczenie przeciwprądowe i ponadnapięciowe (40mA))
• Wyjście zasilające 1.2V-5V wraz z zabezpieczeniami nadpięciowym oraz nadprądowym (300mA)
• Wyjście napięcia 8-13V/1mA, kontrolowane programowo.
• Obsługa układów niskiego napięcia (1.2V)
• Funkcja Self Test
• Kompaktowe wymiary : 5x11.5cm5

Pluginy

do Programatora UPA PROG

Przy zakupie programatora dodajemy zestaw pluginów. Aby aktywować pluginy prosimy o kontakt mailowy. Poniżej w linku znajduje się lista pluginów.

Układy wspierane przez programator

UUSP-S UPA PROG

Renesas V850: uPD70F3237***, uPD70F3333, uPD70F3334, uPD70F3335, uPD70F3336, uPD70F3340, uPD70F3341, uPD70F3342, uPD70F3343, uPD70F3350, uPD70F3351, uPD70F3352, uPD70F3353, uPD70F3370A, uPD70F3371, uPD70F3372, uPD70F3373, uPD70F3374, uPD70F3375, uPD70F3376A, uPD70F3377A, uPD70F3378, uPD70F3379, uPD70F3380, uPD70F3381, uPD70F3382, uPD70F3383, uPD70F3384, uPD70F3385, uPD70F3421, uPD70F3422, uPD70F3423, uPD70F3424, uPD70F3425, uPD70F3426A, uPD70F3427, uPD70F3522, uPD70F3523, uPD70F3524, uPD70F3525, uPD70F3526, uPD70F3529, uPD70F3532, uPD70F3535, uPD70F3536, uPD70F3537, uPD70F3548, uPD70F3624, uPD70F3628, uPD70F3629, uPD70F3632, uPD70F3633, uPD70F3634, uPD70F3635, uPD70F3736
Freescale HCS08: MC9S08DZ16, MC9S08DZ32, MC9S08DZ48, MC9S08DZ60, MC9S08AW16, MC9S08AW32, MC9S08AW48, MC9S08AW60, MC9S08GB60
Freescale MAC7200: MAC7241, MAC7242
Infineon XC2300: XC2060N-40F, XC2060M-104F, XC2336B-24F, XC2336B-40F, XC2361A-56F, XC2361A72F, XC2363A-56F, XC2363A-72F, XC2364A-56F,XC2364A-72F, XC2364A-104F, XC2365A-56F, XC2365A-72F, XC2365A-104F, XC2361B-24F, XC2361B-40F, XC2363B-24F, XC2363B-40F, XC2364B-24F,XC2364B-40F, XC2365B-24F, XC2365B-40F
Freescale MPC5600: MPC5604C, MPC5604P, MPC5606B
Freescale 9S12: MC9S12G48, MC9S12G64, MC9S12G96, MC9S12G128, MC9S12G192, MC9S12G240
STMicroelectronics SPC56P: SPC560P44, SPC560P50
STMicroelectronics ST62*:ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32
Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
Motorola/Freescale 9S12(X/E): MC9S12A128, MC9S12B128, MC9S12C128, MC9S12C16, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12D64, MC9S12DG128, MC9S12DG256, MC9S12DP512, MC9S12H128, MC9S12H256, MC9S12HA32, MC9S12HA48, MC9S12HA64, MC9S12HY32, MC9S12HY48,MC9S12HY64, MC9S12HZ128, MC9S12HZ256, MC9S12HZ64, MC9S12P128, MC9S12P32, MC9S12P64, MC9S12P96, MC9S12XA128, MC9S12XA256,MC9S12XA512, MC9S12XB128, MC9S12XB256, MC9S12XD128, MC9S12XD256, MC9S12XD64, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XDQ256, MC9S12XDT256, MC9S12XDT384, MC9S12XDT512, MC9S12XEG128, MC9S12XEP100, MC9S12XEP768, MC9S12XEQ384, MC9S12XEQ512,MC9S12XET256, MC9S12XHY128, MC9S12XHY256, MC9S12XHZ256, MC9S12XHZ384, MC9S12XHZ512, MC9S12XS64, MC9S12XS128, MC9S12XS256
Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162,  ATmega163, ATmega323, ATmega64, ATmega103,  ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535, ATmega48, ATmega88, ATmega168,ATmega169, ATmega328
Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675
Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73,  PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A), PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946
EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01, 24C1024, 24C1025
EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045, 25LC512, 25LC1024
EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A ,S-29390A
Serial Flash SPI: M25P05, M25P10, M25P20, M25P40, M25P80,  A25L512, A25L010, A25L020, A25L040, A25L080, A25L016, A25L032, SST25VF512A, SST25VF010A, SST25VF020B, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A


*EEPROM tylko
**D-Flash pamięc tylko
